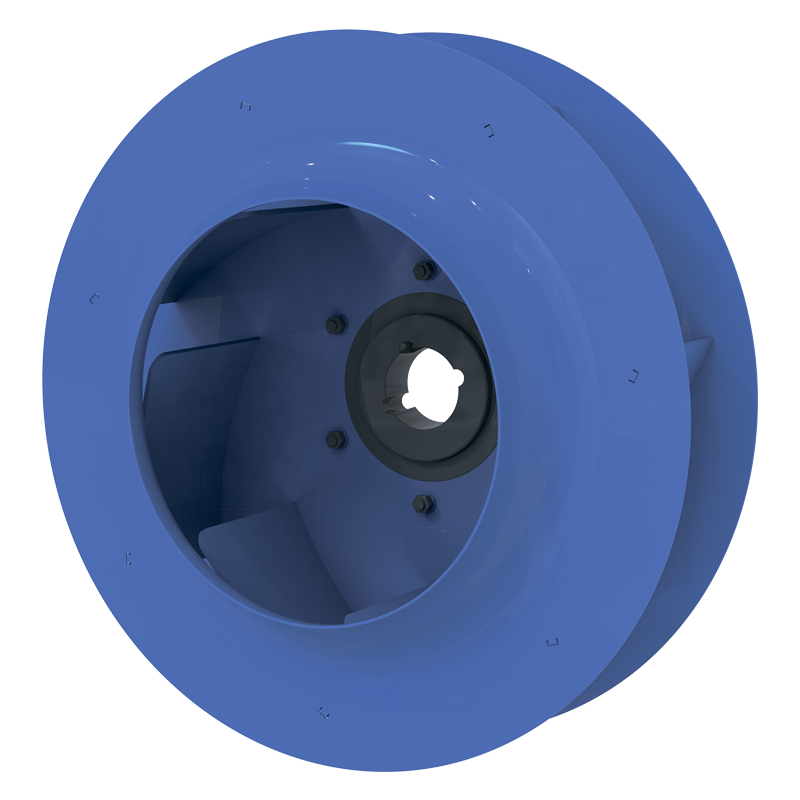

KRR56A/SM20
- Size: 310–710 mm
- Material: steel, powder coated in blue
- Coatings: RAL 5007
- Cover type: GL
- Number of blades: seven (7)
- Single-flow Operation Mode: S1
- Fitting position: horizontal or vertical
- Contents of delivery:
- inlet ring with the ability to measure volumetric flow
- screwed hub
- clamping sleeve for a specific motor shaft
- Min./Max. permissible ambient impeller temperature (transportable/ storage): –40°C… +80°C
- Min. Ambient Temperature: –20°C
- Max. Ambient Temperature: +80°C
Characteristics
Modification name
KRR56A/SM20
∅ D [mm]
644.2
∅ Dn [mm]
363
H [mm]
229
h [mm]
156
∅ Dh [mm]
140.3±0.1
∅ D1 [mm]
∅ D2 [mm]
∅ E1 [mm]
∅ D5 [mm]
ZxW1°
NxW2°
∅ Do [mm]
190
∅ d [mm]
9.5
N
6
Air Flow [m³/h]
Motor type
Dimensions [mm]
644.2х229х363
Weight [kg]
19.2
Dimensions
