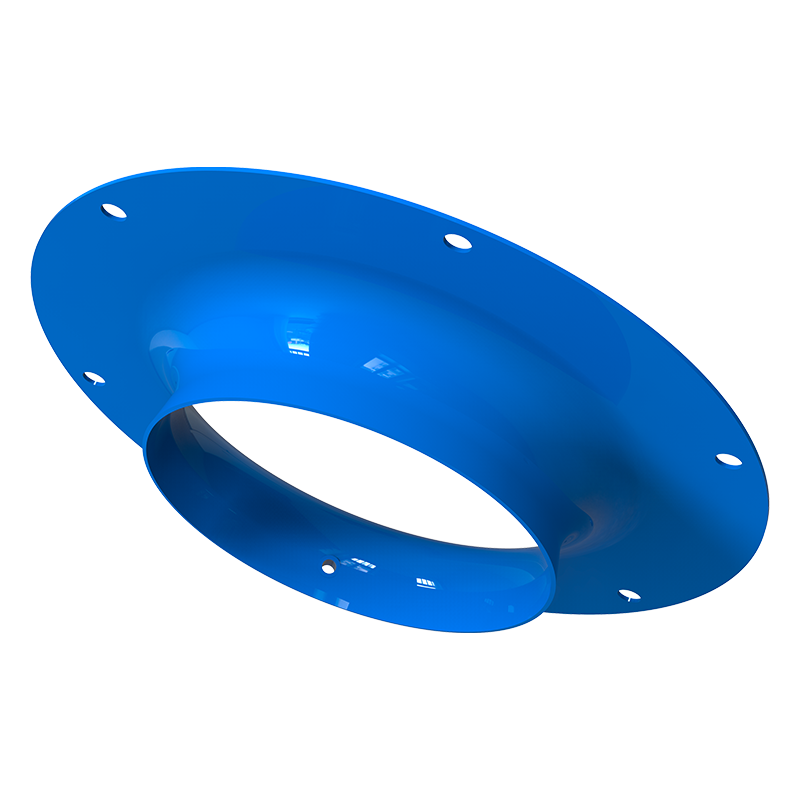

    IR 710BK ST

    • Size: 310-800 mm
    • Material: steel, powder coated in blue
    • Coatings: RAL 5007
    • Min./Max. permissible ambient impeller temperature (transportable/ storage): –40°C… +80°C
    • Min. Ambient Temperature: –20°C
    • Max. Ambient Temperature: +80°C
    Download catalogue

    Characteristics

    Modification name

    IR 710BK ST

    ∅ D [mm]

    704

    H [mm]

    131

    ∅ D1 [mm]

    428.9

    ∅ D2 [mm]

    443.1

    ∅ E1 [mm]

    670

    ∅ D5 [mm]

    10.5

    ZxW1°

    6x90

    NxW2°

    4x90

    Air Flow [m³/h]

    Motor type

    Dimensions [mm]

    704х131х428.9

    Weight [kg]

    5.9

    Dimensions
