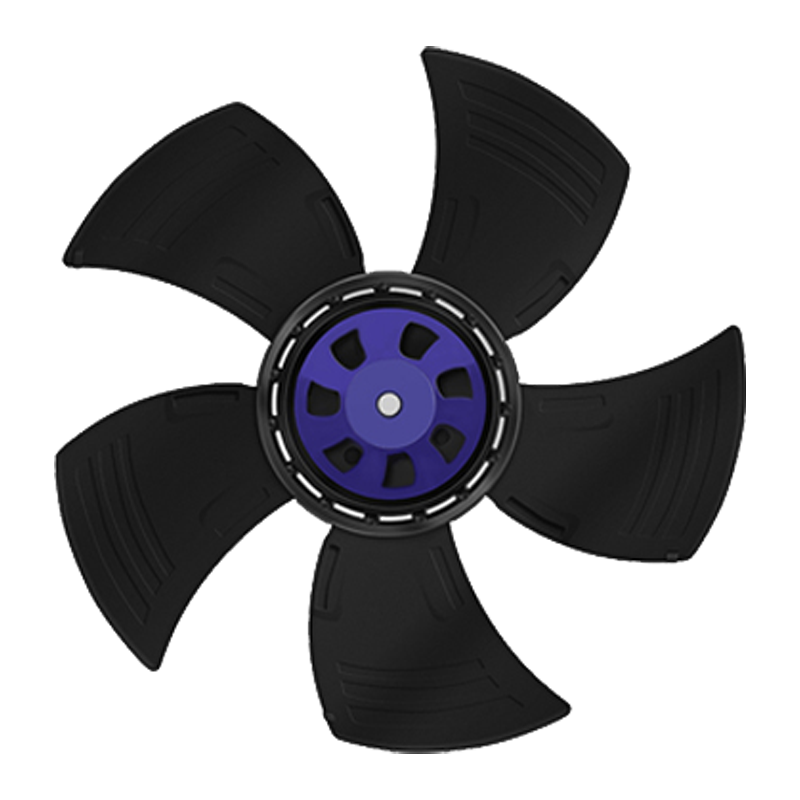

BL-A300C-EC-07
- Impeller material: PA plastic + 30% glass fiber
- Direction of rotation: CCW, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-A300C-EC-07
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
2200
Air Flow [m³/h]
2450
Power input max [W]
210
Сurrent max [A]
1.5
Sound pressure level [dB(A)]
67
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
–
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
300
Performance curves
Dimensions
Electrical connections
