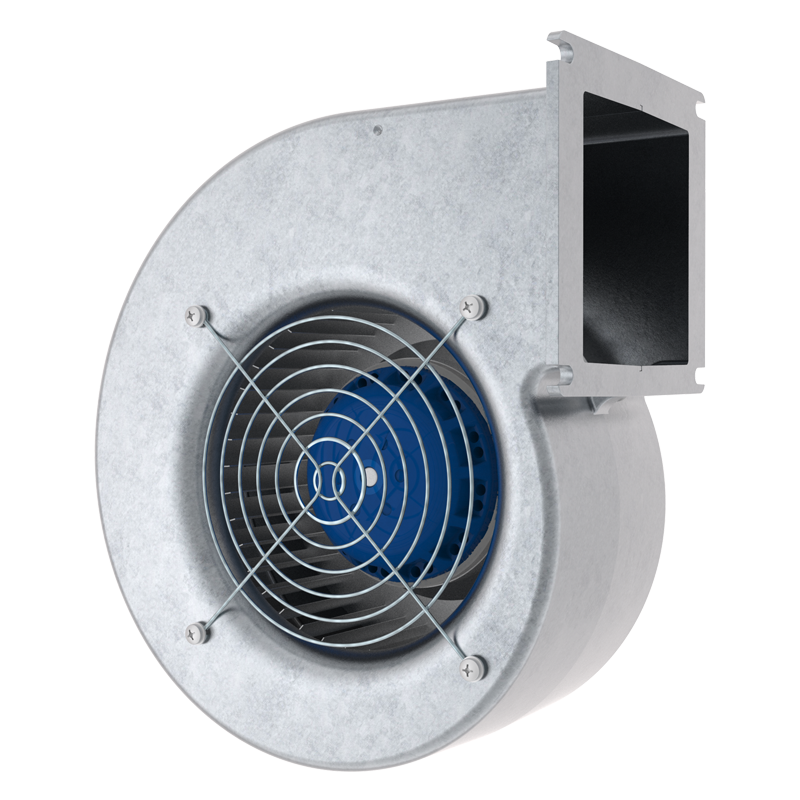

SL-F160A-2E-D01-11
- Impeller material: galvanized steel
- Casing material: die-cast aluminium
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP44
- Insulation class: B, F
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
SL-F160A-2E-D01-11
Performance curve
III
Nominal voltage [VAC]
230
Frequency [Hz]
50
Speed [RPM]
2660
Air Flow [m³/h]
750
Power input max [W]
353
Сurrent max [A]
1.55
Sound pressure level [dB(A)]
71
Perm. amb. temperature [°С]
-25...+50
Capacitor [μF/VDB]
6.0/450
Motor type
AC
Electrical connection
Type “A“
Dimensions [mm]
160
Performance curves
/SL-F160A-2E-D01-11-graph-600-en1.png) |
SL-F160A-2E-D01-11 |
Dimensions
/SL-F160A-4E-2E-B01-D01-11-dimensions-700.png)
Electrical connections
