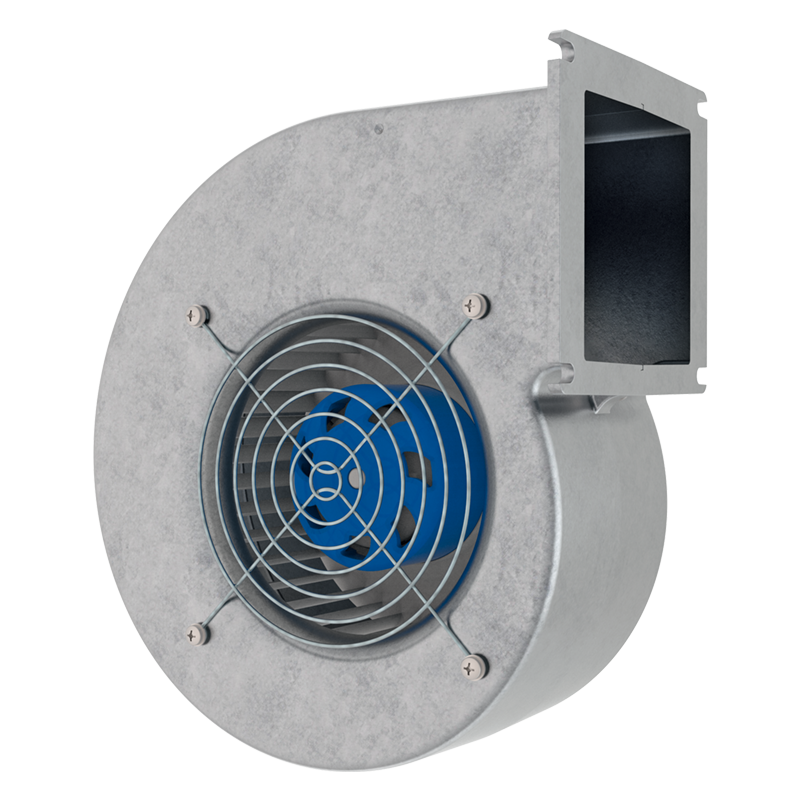

SL-F140B-EC-12
- Impeller material: galvanized steel
- Casing material: die-cast aluminium
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
SL-F140B-EC-12
Performance curve
I
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
1940
Air Flow [m³/h]
420
Power input max [W]
64
Сurrent max [A]
0.54
Sound pressure level [dB(A)]
65
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
–
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
140
Performance curves
Dimensions
Electrical connections
