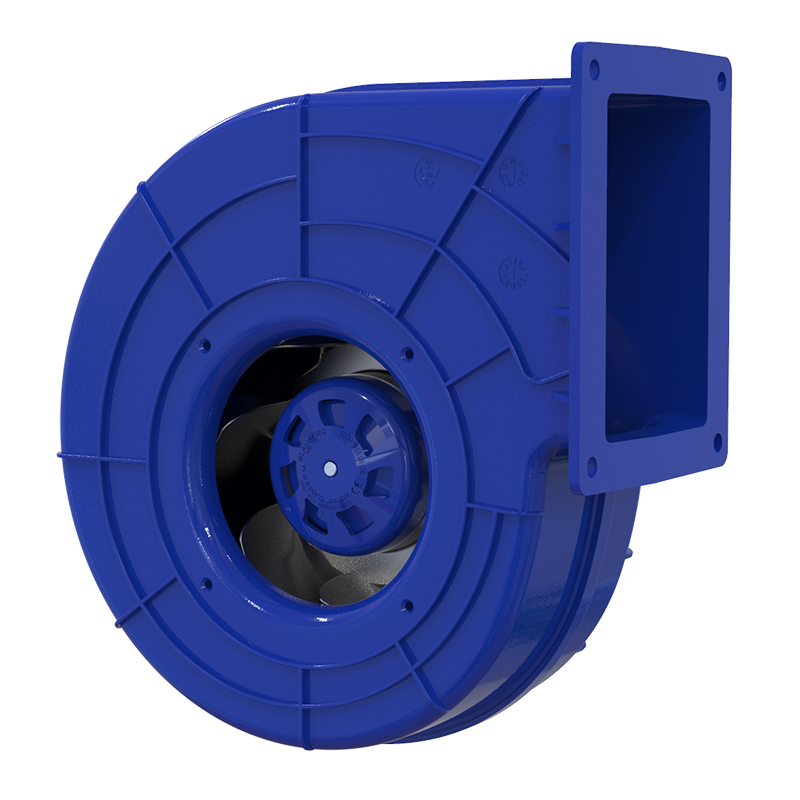

SL-B133B-EC-04
- Impeller material: PA plastic + 30% glass fiber
- Casing material: PP Lupol GP
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
SL-B133B-EC-04
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
4100
Air Flow [m³/h]
260
Power input max [W]
27
Сurrent max [A]
0.25
Sound pressure level [dB(A)]
65
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
–
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
133
Performance curves
Dimensions
Electrical connections
