AC axial fan

(welded ø 350 mm)

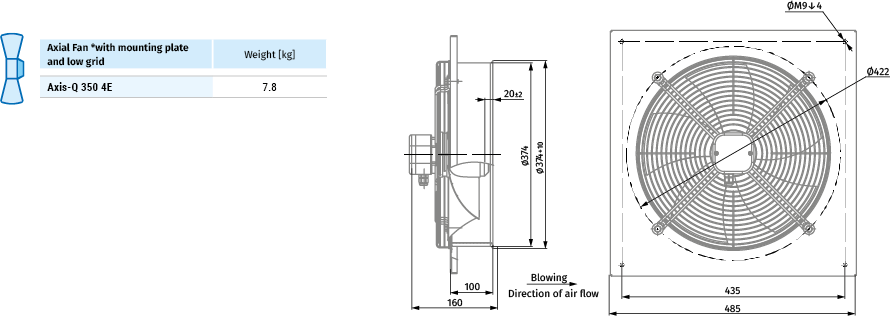

Axis-Q 350 4E

Print version
ACCERoHSErP 2015CCCEAC Download full catalogue
Impeller material: alkyd coated steel, welded
Direction of rotation: clockwise for blowing "B" and counter-clockwise for sucking "S", seen on rotor
Type of protection: IP54
Insulation class: F
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Electrical connections
Perfomance curves
Modification name Performance curve Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input [W] Current [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Capacitor [μF/VDB] Electrical connection
Axis-Q 350 4E I 230 50 1330 218 0.97 63 -25...+50 4.0/450 Type “A“
II 60 1570 248 1.10 67
