AC axial fan

(stamped ø 300 mm)

BL-A300A-4E-C01-B0
BL-A300A-4E-C01-B1
BL-A300A-4E-C01-B3

Print version
ACCERoHSCCC Download full catalogue
Impeller material: alkyd coated steel, stamped
Direction of rotation: clockwise for blowing "B" and counter-clockwise for sucking "S", seen on rotor
Type of protection: IP44
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Characteristics
Downloads

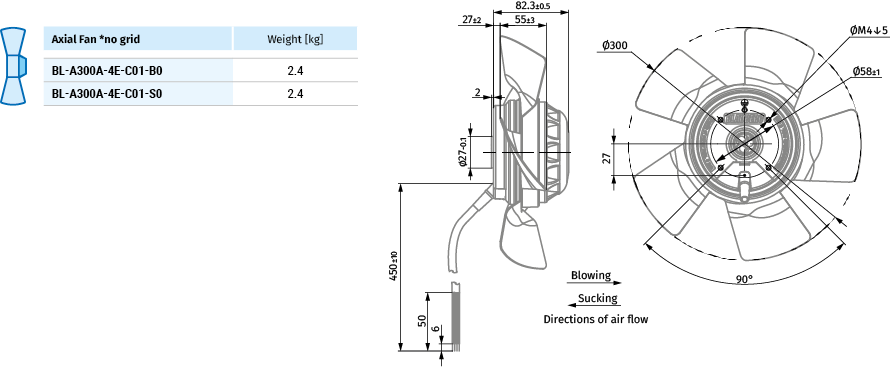

Dimensions
Electrical connections
Perfomance curves
Modification name Performance curve Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input [W] Current [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Capacitor [μF/VDB] Electrical connection
BL-A300A-4E-C01-B0
BL-A300A-4E-C01-B1
BL-A300A-4E-C01-B3
I 230 50 1290 93 0.41 59 -25...+50 3/450 Type “A“
II 60 1380 116 0.50 63
Name Download Watch
Draft Specification Form (pdf 44.85Kb)
AC axial fan (stamped ø 300 mm) - data sheet (pdf 620.08Kb)
AC axial fan (stamped ø 300 mm) - image (png 722.94Kb)
AC axial fan (stamped ø 300 mm) - image (psd 12.31Mb)
Product specification BL-A300A-4E-C01-B0(S0) (pdf 3.07Mb)
Product specification BL-A300A-4E-C01-B1(S1) (pdf 3.36Mb)
Product specification BL-A300A-4E-C01-B3(S3) (pdf 2.95Mb)
Product specification Axis-F 300 4E (pdf 4.13Mb)
Product specification Axis-Q 300 4E (pdf 3.74Mb)
