Axis-Q 300 4E
- Impeller material: alkyd coated steel, stamped
- Direction of rotation: clockwise for blowing "B" and counter-clockwise for sucking "S", seen on rotor
- Type of protection: IP44
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
Axis-Q 300 4E
Performance curve
I, II
Nominal voltage [VAC]
230
Frequency [Hz]
50, 60
Speed [RPM]
1290, 1380
Air Flow [m³/h]
1700, 1900
Power input [W]
93, 116
Current [A]
0.41, 0.50
Sound pressure level [dB(A)]
59, 63
Perm. amb. temperature [°С]
-25...+50
Capacitor [μF/VDB]
3/450
Motor type
AC
Electrical connection
Type “A“
Dimensions [mm]
300
Performance curves
/BL-A300A-4E-C01-B3-graf-600-en.png)

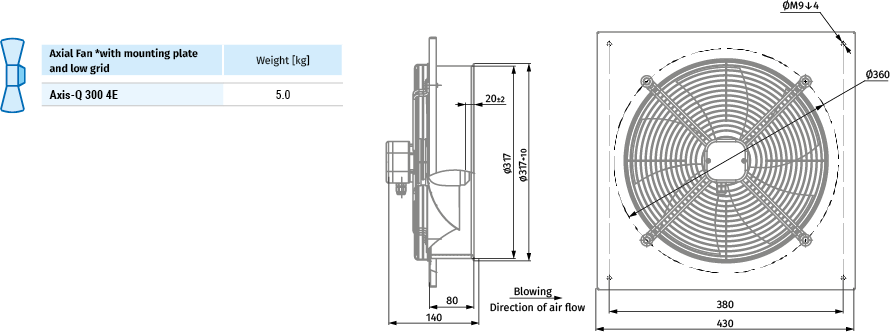

Dimensions
/Axis-Q-300-4E-dimensions-890.png)
Electrical connections
