AC axial fan

(stamped ø 300 mm)

Axis-F 300 4E

Print version

RoHS

CCC

EAC

Download full catalogue

Impeller material:	alkyd coated steel, stamped
Direction of rotation:	clockwise for blowing "B" and counter-clockwise for sucking "S", seen on rotor
Type of protection:	IP44
Insulation class:	B
Mode of operation:	continuous operation (S1)
Bearing:	ball bearings
Motor protection:	self-resetting TOP wired internally

Characteristics

Downloads

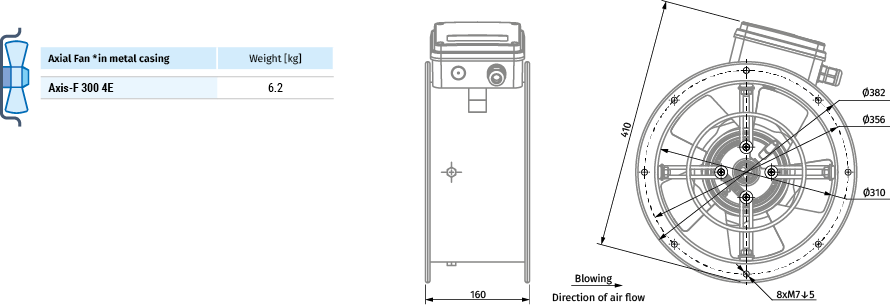

Dimensions

Electrical connections

Perfomance curves

Modification name	Performance curve	Nominal voltage [VAC]	Frequency [Hz]	Speed [RPM]	Power input [W]	Current [A]	Sound pressure level [dB(A)]	Perm. amb. temperature [°С]	Capacitor [μF/VDB]	Electrical connection
Axis-F 300 4E	I	230	50	1290	93	0.41	59	-25...+50	3/450	Type “A“
Axis-F 300 4E	II	230	60	1380	116	0.50	63	-25...+50	3/450	Type “A“

	Name	Download	Watch
	Draft Specification Form (pdf 44.85Kb)
	AC axial fan (stamped ø 300 mm) - data sheet (pdf 620.08Kb)
	AC axial fan (stamped ø 300 mm) - image (png 722.94Kb)
	AC axial fan (stamped ø 300 mm) - image (psd 12.31Mb)
	Product specification BL-A300A-4E-C01-B0(S0) (pdf 3.07Mb)
	Product specification BL-A300A-4E-C01-B1(S1) (pdf 3.36Mb)
	Product specification BL-A300A-4E-C01-B3(S3) (pdf 2.95Mb)
	Product specification Axis-F 300 4E (pdf 4.13Mb)
	Product specification Axis-Q 300 4E (pdf 3.74Mb)
