AC axial fan
(stamped ø 200 mm)
BL-A200A-2E-A01-B0
BL-A200A-2E-A01-B1
BL-A200A-2E-A01-B3
Print version
Download full catalogue
| Impeller material: | alkyd coated steel, stamped |
| Direction of rotation: | clockwise for blowing "B" and counter-clockwise for sucking "S", seen on rotor |
| Type of protection: | IP44 |
| Insulation class: | B |
| Mode of operation: | continuous operation (S1) |
| Bearing: | ball bearings |
| Motor protection: | self-resetting TOP wired internally |
Characteristics
Downloads
Dimensions
Electrical connections
Perfomance curves
| Modification name | Performance curve | Nominal voltage [VAC] | Frequency [Hz] | Speed [RPM] | Power input [W] | Current [A] | Sound pressure level [dB(A)] | Perm. amb. temperature [°С] | Capacitor [μF/VDB] | Electrical connection |
|---|---|---|---|---|---|---|---|---|---|---|
| BL-A200A-2E-A01-B0 BL-A200A-2E-A01-B1 BL-A200A-2E-A01-B3 |
I | 230 | 50 | 2540 | 67 | 0.29 | 60 | -25...+50 | 1.5/450 | Type “A“ |
| II | 60 | 2650 | 84 | 0.36 | 62 |

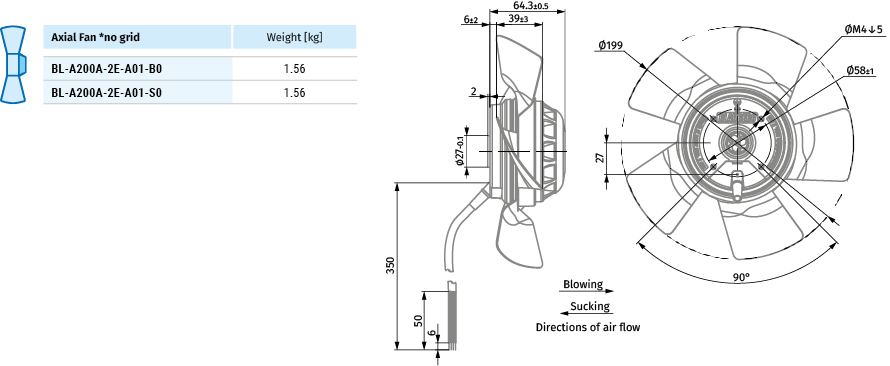

/BL-A200A-2E-A01-S-B0-dimensions-890.png)
/BL-A200A-2E-A01-S-B1-dimensions-890.png)
/BL-A200A-2E-A01-B1-dimensions-890.png)
/Axis-Q-200-2E-dimensions-890.png)
/Axis-F-200-2E-dimensions-890.png)
/BL-A200A-2E-A01-B3-graf-en-600.png)
