AC axial fan

(stamped ø 200 mm)

Axis-Q 200 2E

Print version
ACCERoHSCCCEAC Download full catalogue
Impeller material: alkyd coated steel, stamped
Direction of rotation: clockwise for blowing "B" and counter-clockwise for sucking "S", seen on rotor
Type of protection: IP44
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Characteristics
Downloads

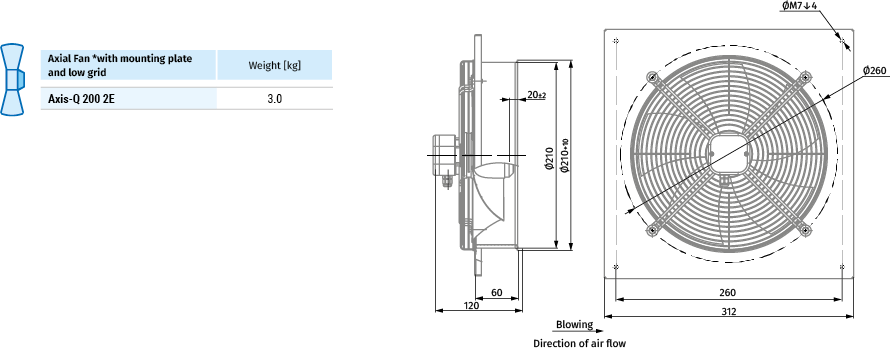

Dimensions
Electrical connections
Perfomance curves
Modification name Performance curve Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input [W] Current [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Capacitor [μF/VDB] Electrical connection
Axis-Q 200 2E I 230 50 2540 67 0.29 60 -25...+50 1.5/450 Type “A“
II 60 2650 84 0.36 62
