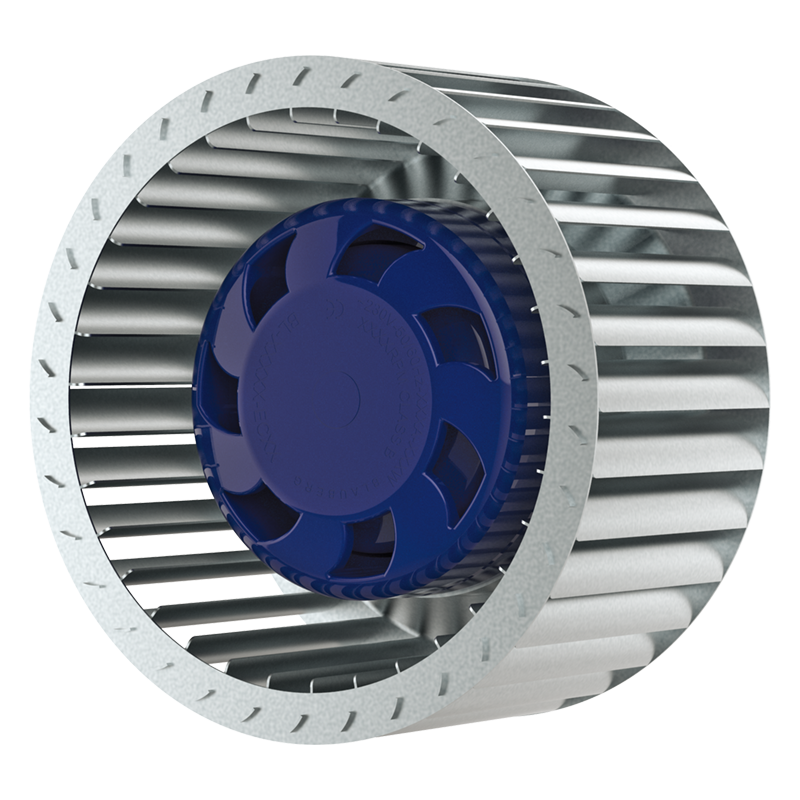

BL-F120B-EC-00
- Impeller material: galvanized steel
- Speed control: 0 ~ 10V DC/PWM
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-F120B-EC-00
Performance curve
I
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
2800
Air Flow [m³/h]
336
Power input max [W]
86
Сurrent max [A]
0.6
Sound pressure level [dB(A)]
67
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
–
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
120
Performance curves
/image (24).png)
Dimensions
/BL-F120B-EC-00-dimensions-890.png)
Electrical connections
