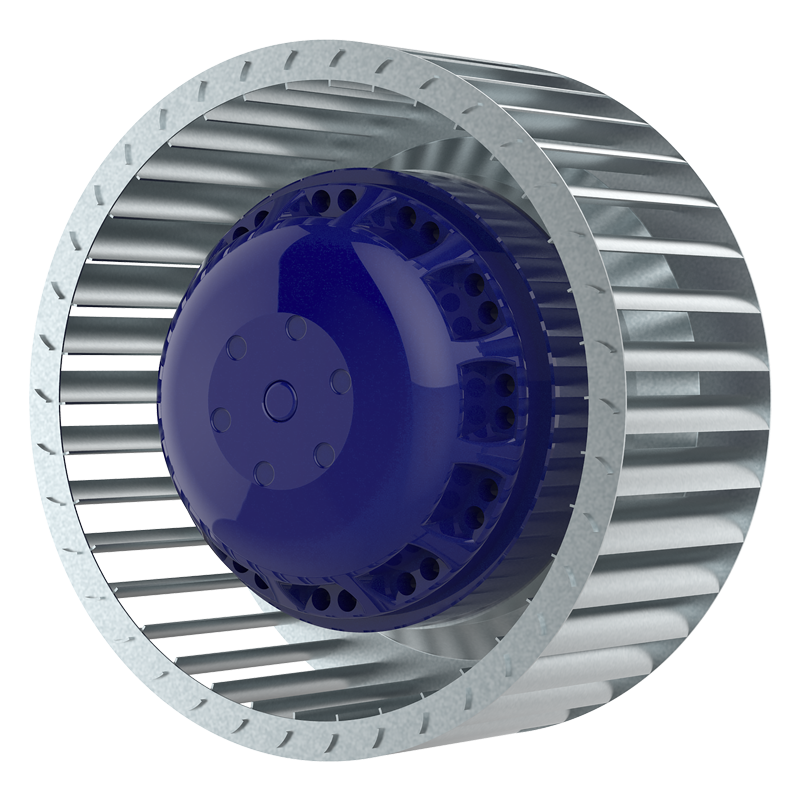

AC centrifugal fan

(forward curved ø 140 mm)

BL-F140A-2E-С01-01

Print version
ACCE Download full catalogue
Impeller material: galvanized steel
Direction of rotation: clockwise, seen on rotor
Type of protection: IP44
Insulation class: F
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Characteristics
Perfomance curves
Downloads
Dimensions
Electrical connections
Perfomance curves
Modification name Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input [W] Current [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Capacitor [μF/VDB] Electrical connection
BL-F140A-2E-С01-01 230 50 2600 102 0.46 72 -25...+50 3.5/450 Type “A“
60 3000 116 0.51 71
  • Choice method:
  • Air capacity:
  • Pressure:
Duty point
  • Air capacity: --
  • Pressure: ---
Name Download Watch
Draft Specification Form (pdf 44.85Kb)
AC centrifugal fan (forward curved ø 140 mm) - data sheet (pdf 101.22Kb)
AC centrifugal fan (forward curved ø 140 mm) - image (png 795.2Kb)
AC centrifugal fan (forward curved ø 140 mm) - image (psd 2.65Mb)
