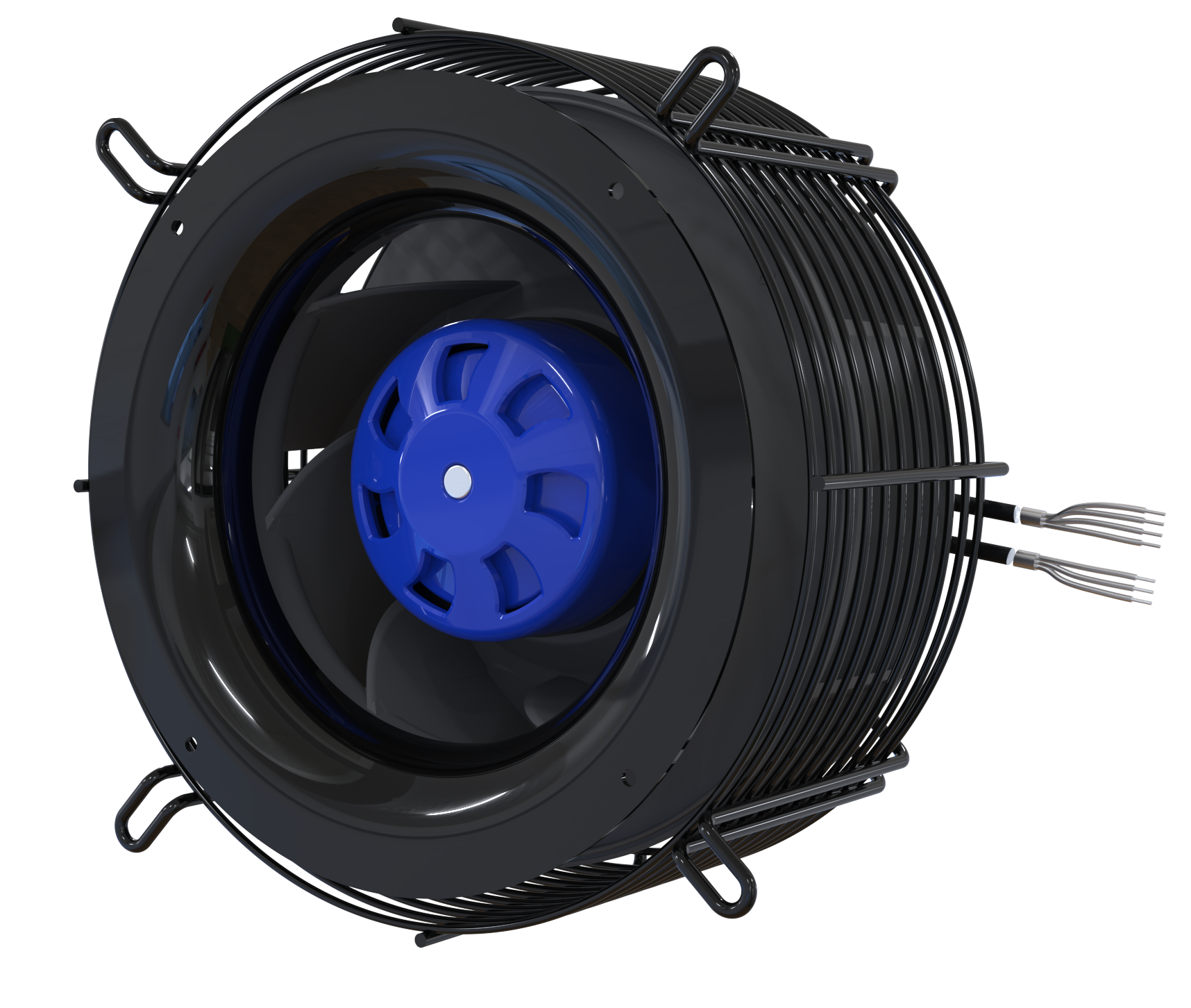

KL-B225G-EC-M07
- Impeller material: PA plastic + 30% glass fiber
- Speed control: 0 ~ 10V DC / PWM / Modbus (RS-485)
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
KL-B225G-EC-M07
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
3200
Air Flow [m³/h]
1300
Power input max [W]
240
Сurrent max [A]
1.95
Perm. amb. temperature [°С]
-25...+60
Motor type
EC
Dimensions [mm]
225
Grille
Yes
Performance curves
/airflow KL-B225G-M07.png)
Dimensions
/dimesions KL-B225G-EC-M07 dimesions.png)
Electrical connections
