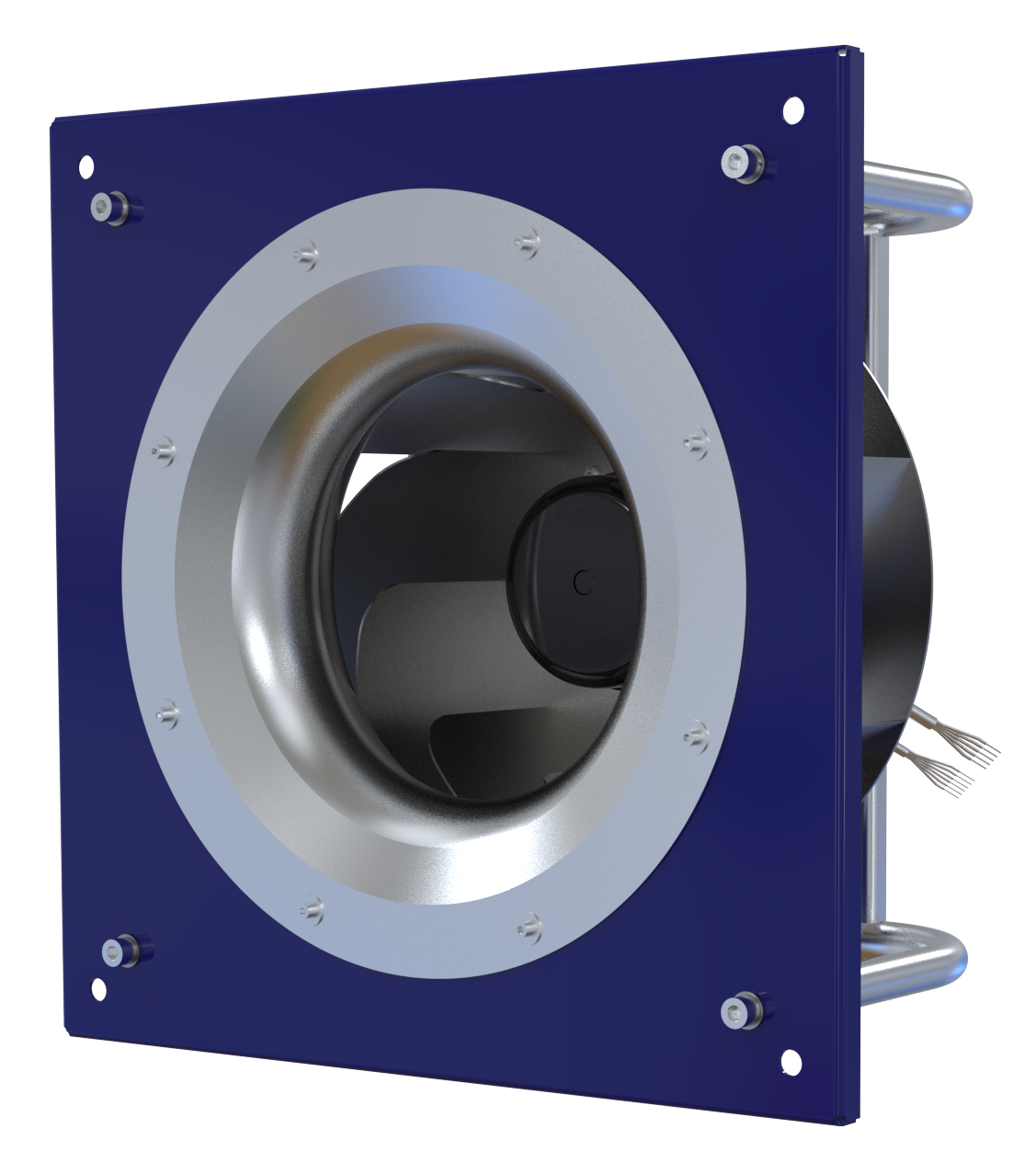

    GL-B310E-EC-05

    • Impeller material: sheet aluminium
    • Speed control: 0 ~ 10V DC/PWM
    • Inlet ring material: sheet steel
    • Casing material: sheet steel, painted blue
    • Direction of rotation: clockwise, seen on rotor
    • Type of protection: IP55
    • Insulation class: B
    • Mode of operation: continuous operation (S1)
    • Bearing: ball bearings
    • Motor protection: self-resetting TOP wired internally
    Download catalogue

    Characteristics

    Modification name

    GL-B310E-EC-05

    Nominal voltage [VAC]

    230

    Frequency [Hz]

    50/60

    Speed [RPM]

    2960

    Air Flow [m³/h]

    4000

    Power input max [W]

    700

    Сurrent max [A]

    3.1

    Sound pressure level [dB(A)]

    85

    Perm. amb. temperature [°С]

    -25...+60

    Capacitor [μF/VDB]

    –

    Motor type

    EC

    Electrical connection

    Type “Е“

    Dimensions [mm]

    310

    Performance curves

    Dimensions

    Electrical connections

    Downloads

    GL-B310E-EC-05 Product Specification (pdf 1.99Mb)
