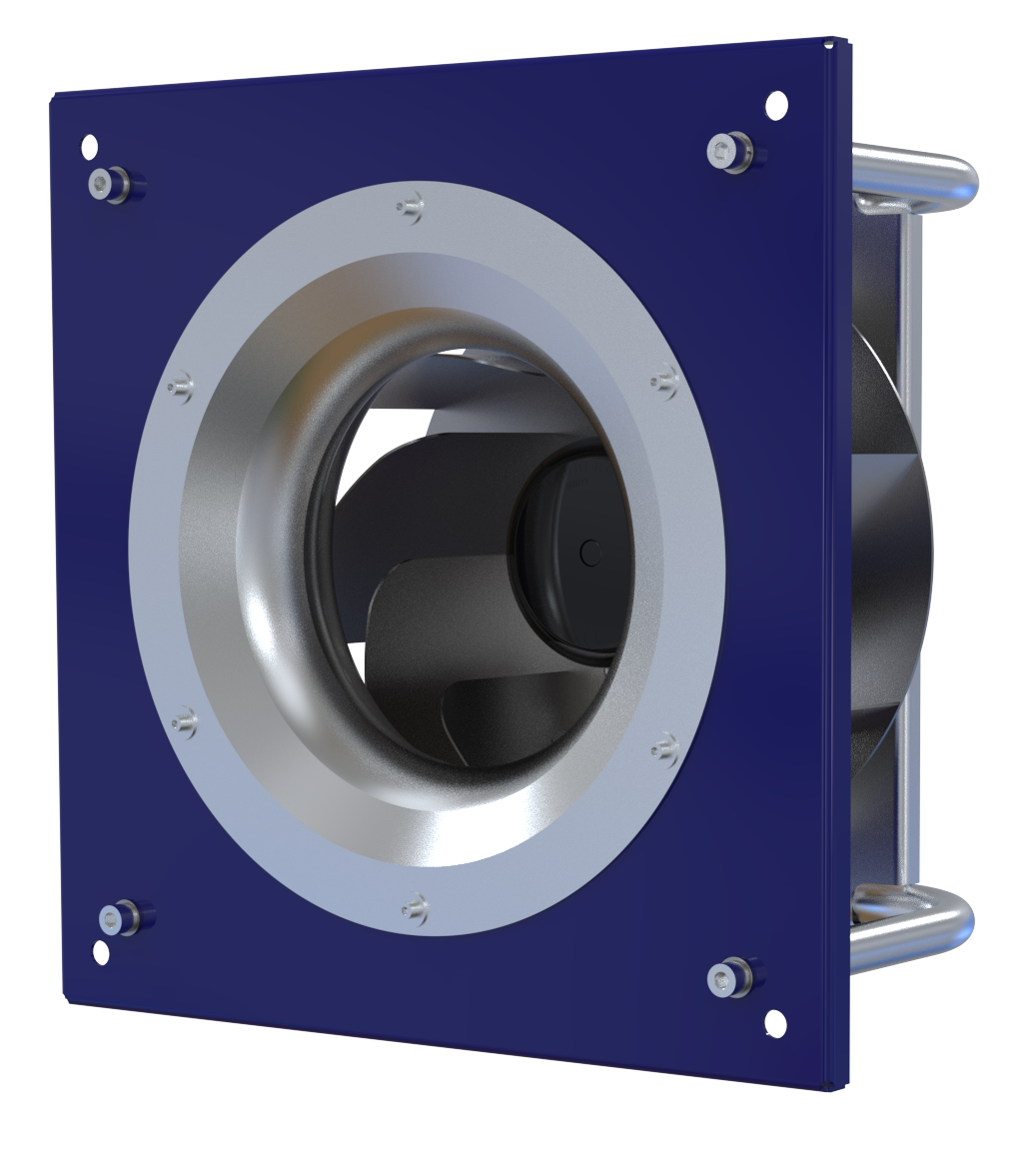

  • Impeller material: sheet aluminium
  • Speed control: 0 ~ 10V DC/PWM
  • Inlet ring material: sheet steel
  • Casing material: sheet steel, painted blue
  • Direction of rotation: clockwise, seen on rotor
  • Type of protection: IP55
  • Insulation class: B
  • Mode of operation: continuous operation (S1)
  • Bearing: ball bearings
  • Motor protection: self-resetting TOP wired internally
Download catalogue

Characteristics

Modification name

GL-B280E-EC-05

Nominal voltage [VAC]

230

Frequency [Hz]

50/60

Speed [RPM]

3270

Air Flow [m³/h]

4000

Power input max [W]

700

Сurrent max [A]

3.1

Sound pressure level [dB(A)]

85

Perm. amb. temperature [°С]

-25...+60

Capacitor [μF/VDB]

Motor type

EC

Electrical connection

Type “Е“

Dimensions [mm]

280

Performance curves

Dimensions

Electrical connections
