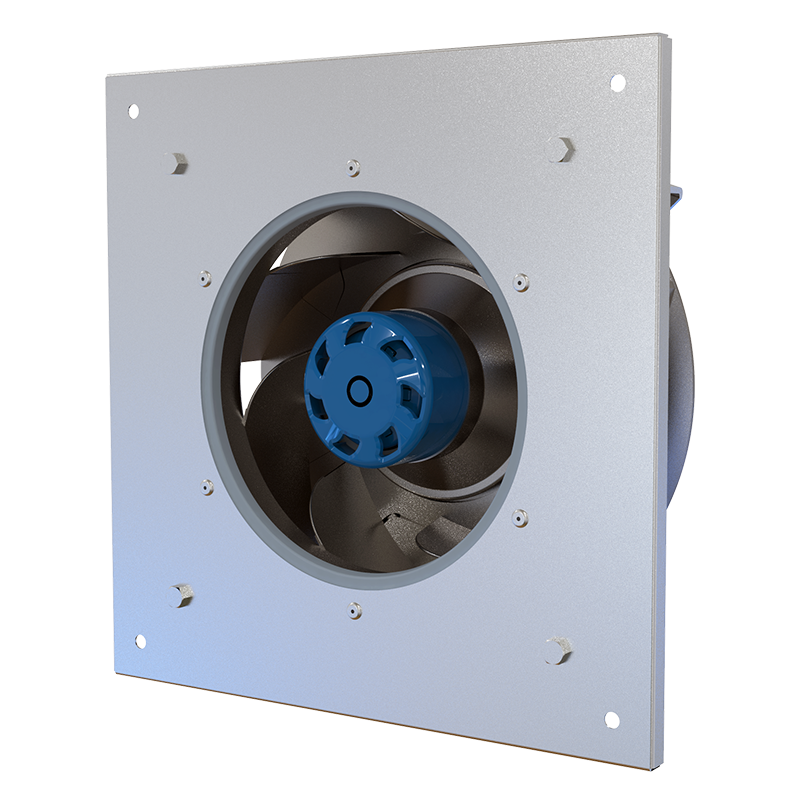

GL-B250B-EC-28
- Impeller material: PA plastic + 30% glass fiber
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
GL-B250B-EC-28
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
2800
Air Flow [m³/h]
1650
Power input max [W]
162
Сurrent max [A]
1.2
Sound pressure level [dB(A)]
72
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
250
Performance curves
/GL-B250B-EC-28-graph-722-472-EN.png)
Dimensions
/GL-B250B-EC-28-dimensions-802-866.png)
Electrical connections
