GL-B250B-EC-00
- Impeller material: PA6+GF30
- Inlet ring material: PA6+GF30
- Casing material: sheet steel, painted gray
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
GL-B250B-EC-00
Performance curve
I
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
1800
Air Flow [m³/h]
1190
Power input max [W]
85
Сurrent max [A]
0.7
Sound pressure level [dB(A)]
72
Perm. amb. temperature [°С]
-25...+60
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
250
Weight [kg]
2.4
Performance curves
/BL-GL-B250B-EC-00-01-graph-475.png) |
|

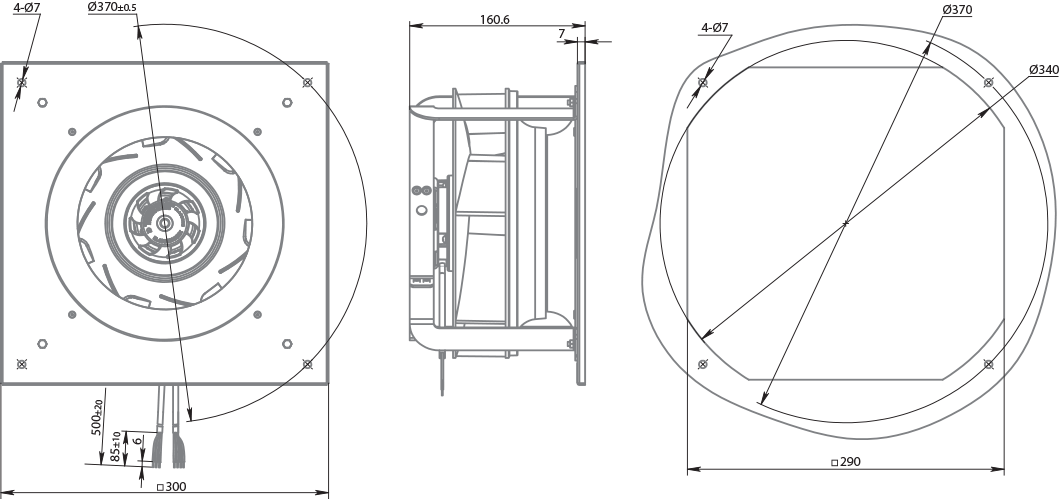

Dimensions
BL-B250B-EC-00
/BL-B250B-EC-00-dimensions-710.png)
GL-B250B-EC-00/GL-B250B-EC-00-dimensions-1059.png)
BL-B250B-EC-01/BL-B250B-EC-01-dimensions-660.png)
GL-B250B-EC-01/GL-B250B-EC-01-dimensions-982.png)
GL-B250B-EC-00
BL-B250B-EC-01
GL-B250B-EC-01
Electrical connections
