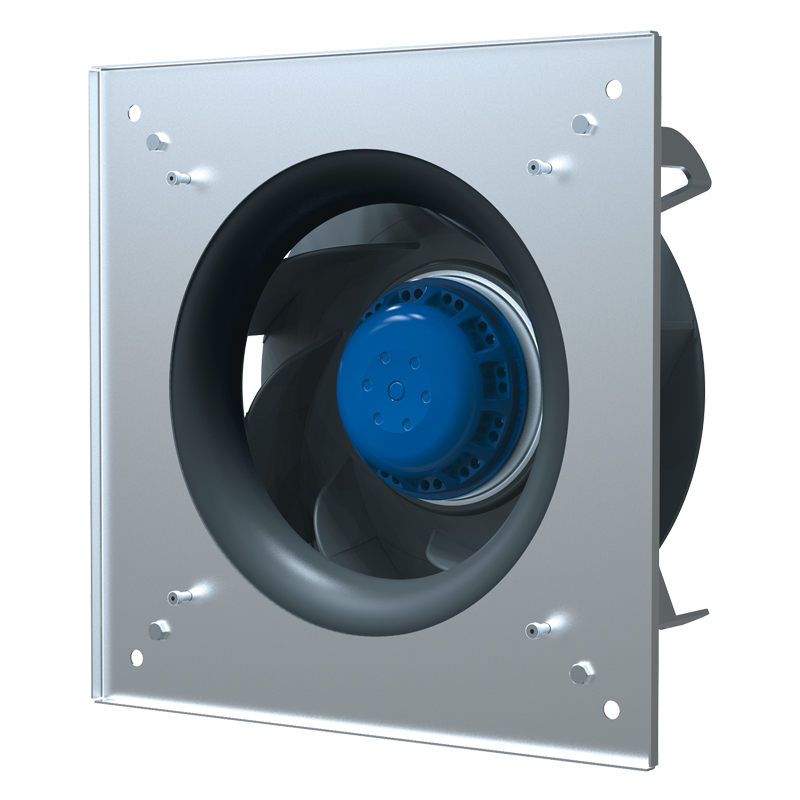

    GL-B220B-2E-B01-01

    • Impeller material: PA6+GF30
    • Inlet ring material: PA6+GF30
    • Casing material: sheet steel, painted gray
    • Direction of rotation: clockwise, seen on rotor
    • Type of protection: IP44
    • Insulation class: B
    • Mode of operation: continuous operation (S1)
    • Bearing: ball bearings
    • Motor protection: self-resetting TOP wired internally
    Download catalogue

    Characteristics

    Modification name

    GL-B220B-2E-B01-01

    Performance curve

    III, IV

    Nominal voltage [VAC]

    230

    Frequency [Hz]

    50, 60

    Speed [RPM]

    2600, 3000

    Air Flow [m³/h]

    900, 950

    Power input max [W]

    111, 139

    Сurrent max [A]

    0.5, 0.6

    Sound pressure level [dB(A)]

    70, 71

    Perm. amb. temperature [°С]

    -25...+50

    Capacitor [μF/VDB]

    2/450

    Motor type

    AC

    Electrical connection

    Type “A“

    Dimensions [mm]

    220

    Weight [kg]

    2.15

    Performance curves

    Curve Point n [RPM] Pi [W] I [A]
    I 1 2170 94 0.40
    2 2280 96 0.42
    3 2500 97 0.43
    4 2450 95 0.42

    II 1 2700 104 0.44
    2 2640 108 0.47
    3 2800 110 0.48
    4 2790 102 0.45

    III 1 2510 108 0.43
    2 2470 106 0.47
    3 2600 111 0.50
    4 2510 110 0.43

    IV 1 2905 133 0.53
    2 2880 139 0.57
    3 3000 139 0.60
    4 2915 136 0.51

    Dimensions

    BL-B220B-2E-A01-01, BL-B220B-2E-B01-01
    GL-B220B-2E-A01-01, GL-B220B-2E-B01-01

    Electrical connections
