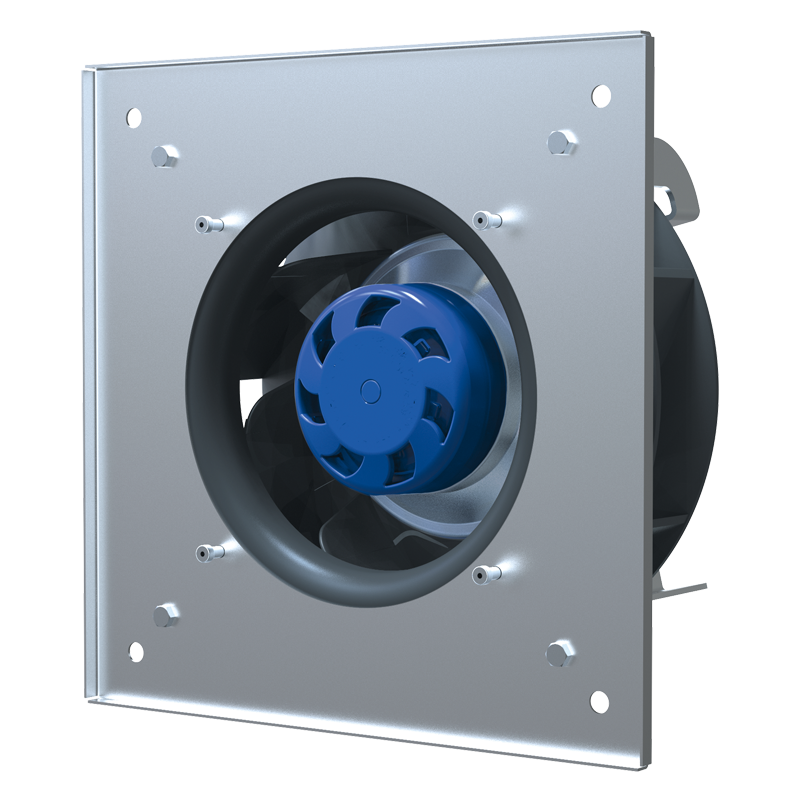

    GL-B190B-EC-03

    • Impeller material: PA6+GF30
    • Inlet ring material: PA6+GF30
    • Casing material: sheet steel, painted gray
    • Direction of rotation: clockwise, seen on rotor
    • Type of protection: IP55
    • Insulation class: B
    • Mode of operation: continuous operation (S1)
    • Bearing: ball bearings
    • Motor protection: self-resetting TOP wired internally
    Download catalogue

    Characteristics

    Modification name

    GL-B190B-EC-03

    Performance curve

    III

    Nominal voltage [VAC]

    230

    Frequency [Hz]

    50/60

    Speed [RPM]

    4100

    Air Flow [m³/h]

    878

    Power input max [W]

    170

    Сurrent max [A]

    1.30

    Sound pressure level [dB(A)]

    72

    Perm. amb. temperature [°С]

    -25...+60

    Motor type

    EC

    Electrical connection

    Type “Е“

    Dimensions [mm]

    190

    Weight [kg]

    2.3

    Performance curves

    Curve Point n [RPM] Pi [W] I [A]
    I 1 3340 82 0.67
    2 3310 85 0.69
    3 3300 87 0.7
    4 3280 86 0.7

    II 1 2990 59 0.47
    2 2960 62 0.48
    3 3000 64 0.5
    4 2965 62 0.49

    III 1 4210 151 1.12
    2 4170 167 1.23
    3 4100 170 1.3
    4 4220 151 1.13

    Dimensions

    BL-B190B-EC-00, BL-B190B-EC-01
    GL-B190B-EC-00, GL-B190B-EC-01
    BL-B190B-EC-03
    GL-B190B-EC-03

    Electrical connections
