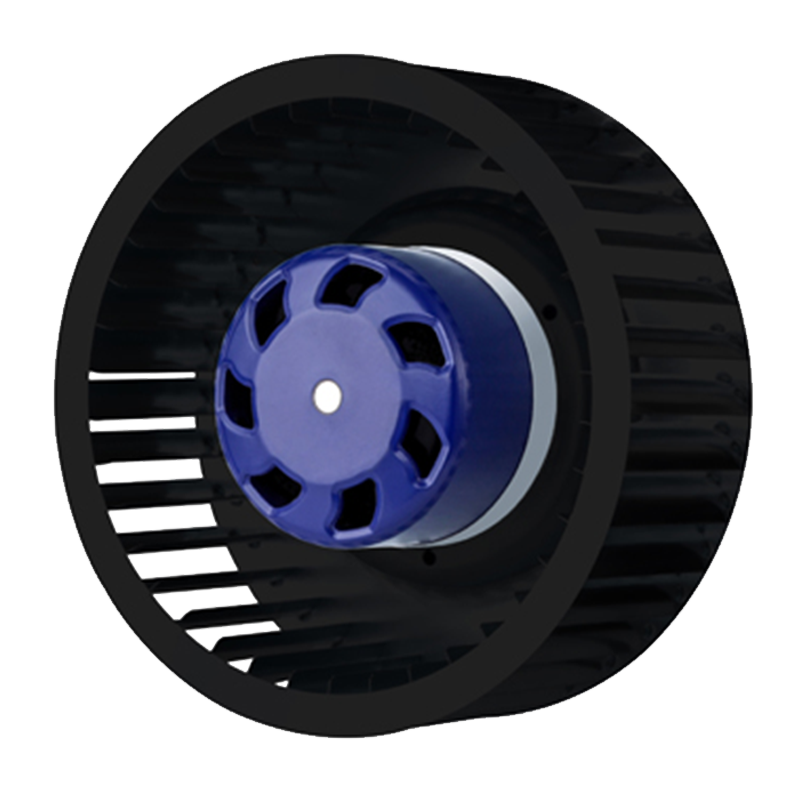

BL-F160B-EC-07
- Impeller material: PA plastic + 30% glass fiber
- Speed control: 0 ~ 10V DC/PWM
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-F160B-EC-07
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
2400
Air Flow [m³/h]
800
Power input max [W]
230
Сurrent max [A]
1.65
Sound pressure level [dB(A)]
73
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
–
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
160
Performance curves
/BL-F160B-EC-07-graph-600.png)
Dimensions
/BL-F160B-EC-07-dimensions-900.png)
Electrical connections
