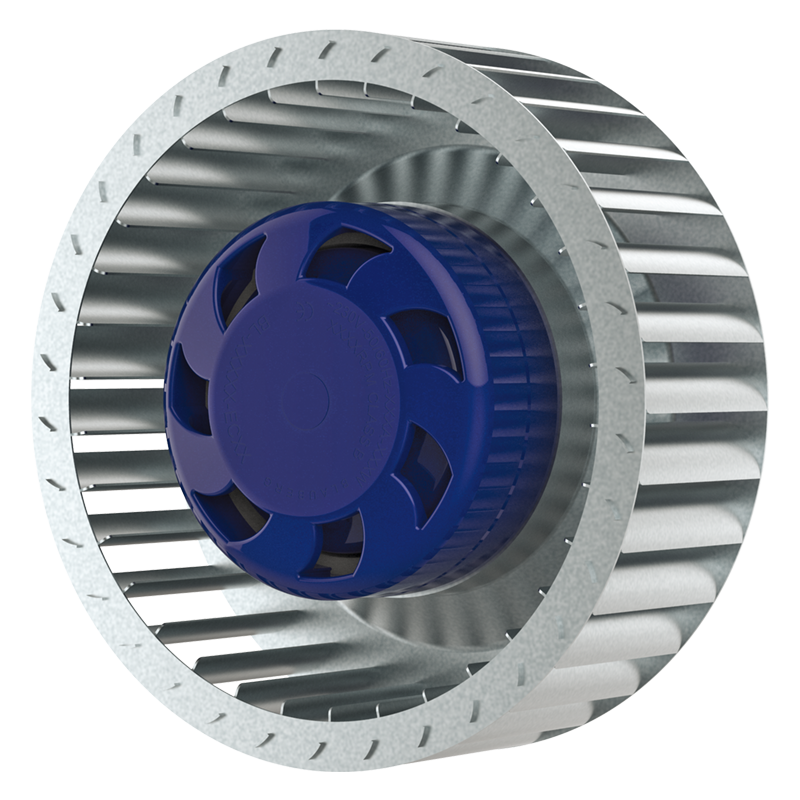

BL-F133A-EC-00
- Impeller material: galvanized steel
- Speed control: 0 ~ 10V DC/PWM
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-F133A-EC-00
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
2290
Air Flow [m³/h]
409
Power input max [W]
85
Сurrent max [A]
0.67
Sound pressure level [dB(A)]
63
Perm. amb. temperature [°С]
-25...+60
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
133
Performance curves
/image (26).png)

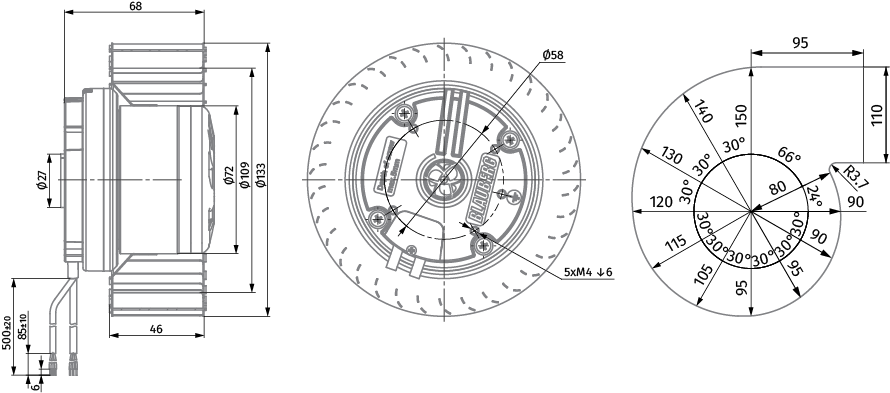

Dimensions
/BL-F133A-EC-00-dimensions-890.png)
Electrical connections
