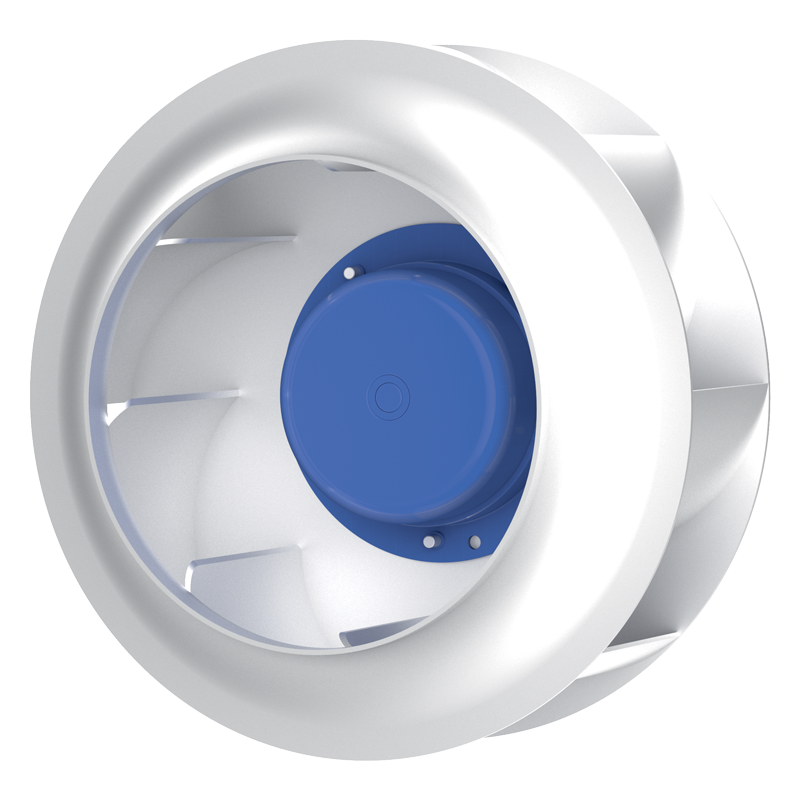

BL-B280E-EC-F05
- Impeller material: sheet aluminium
- Speed control: 0 ~ 10V DC/PWM
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP55
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-B280E-EC-F05
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
3270
Air Flow [m³/h]
3750
Power input max [W]
510
Сurrent max [A]
2.20
Sound pressure level [dB(A)]
79
Perm. amb. temperature [°С]
-25...+60
Capacitor [μF/VDB]
–
Motor type
EC
Electrical connection
Type “Е“
Dimensions [mm]
280
Performance curves
/BL-B280E-EC-F05.png)
Dimensions
/BL-B280E-EC-F05.png)
Electrical connections
