BL-B190A-2E-A02-01
- Impeller material: PA plastic + 30% glass fiber
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP44
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-B190A-2E-A02-01
Performance curve
III, IV
Nominal voltage [VAC]
230
Frequency [Hz]
50, 60
Speed [RPM]
2600, 3000
Air Flow [m³/h]
555, 550
Power input max [W]
63, 74
Сurrent max [A]
0.3, 0.33
Sound pressure level [dB(A)]
60, 65
Perm. amb. temperature [°С]
-25...+50
Capacitor [μF/VDB]
1.0/450
Motor type
AC
Electrical connection
Type “A“
Dimensions [mm]
190

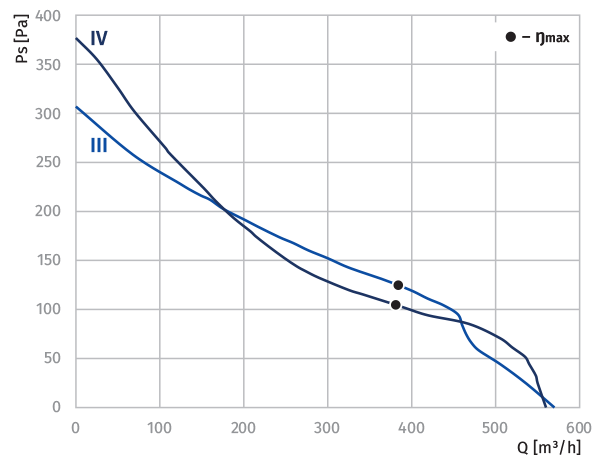

Performance curves
/BL-B190A-2E-A02-01-graf-600-en.png)
Dimensions
/BL-B190A-2E-A01-02-01-shema-700.png)
Electrical connections
