AC centrifugal fan

(backward curved ø 190 mm) - 230 VAC

BL-B190A-2E-A01-01

Print version
ACCERoHSErP 2015CCC Download full catalogue
Impeller material: PA6+GF30
Inlet ring material: PA6+GF30
Casing material: sheet steel, painted gray
Direction of rotation: clockwise, seen on rotor
Type of protection: IP44
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Characteristics
Downloads
Dimensions
Electrical connections
Performance curves
Inlet rings
Modification name Performance curve Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input max [W] Сurrent max [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Capacitor [μF/VDB] Electrical connection Weight [kg]
BL-B190A-2E-A01-01 I 230 50 2700 61 0.3 62 -25...+50 1.5/450 Type “A“ 1.4
II 60 3000 80 0.4 64
Name Download Watch
Draft Specification Form (pdf 44.85Kb)
AC centrifugal fan (backward curved ø 190 mm - *L-B190A-2E-A01-01, *L-B190A-2E-A02-01 - 230 VAC) - data sheet (pdf 648.91Kb)
AC centrifugal fan (backward curved ø 190 mm - GL-B190A-2E-A01-01, GL-B190A-2E-A02-01 - 230 VAC) - image (psd 2.43Mb)
AC centrifugal fan (backward curved ø 190 mm - GL-B190A-2E-A01-01, GL-B190A-2E-A02-01 - 230 VAC) - image (png 550.85Kb)
Product specification GL-B190A-2E-A01-01 (pdf 1.81Mb)
Product specification GL-B190A-2E-A02-01 (pdf 1.81Mb)

BL-B190A-2E-A01-01, BL-B190A-2E-A02-01

GL-B190A-2E-A01-01, GL-B190A-2E-A02-01

Curve Point n [RPM] Pi [W] I [A]
I 1 2510 59 0.27
2 2470 60 0.28
3 2700 61 0.30
4 2665 60 0.28

II 1 2735 76 0.36
2 2630 78 0.38
3 3000 80 0.40
4 2750 74 0.39

III 1 2500 59 0.30
2 2470 59 0.29
3 2600 63 0.30
4 2440 60 0.29

IV 1 2780 68 0.30
2 2800 71 0.30
3 3000 74 0.33
4 2920 62 0.28

Inlet rings IR-PA series

  • For backward curved blade impellers
  • Made of high quality plastic

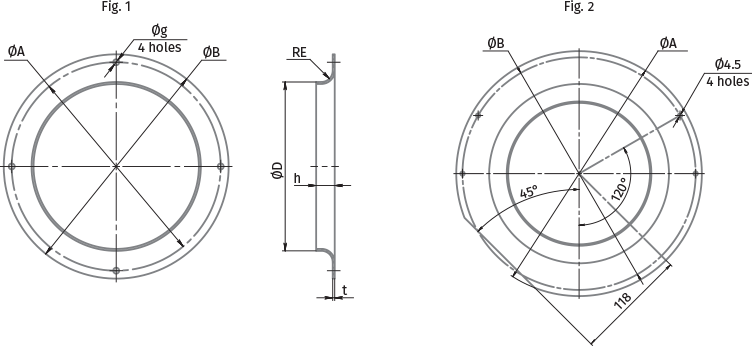

Overall dimmensions [mm]

BLAUBERG Inlet ring BLAUBERG Impeller size A B C D RE h t g Fig.
IR 190BC PA 190 172 158 120.5 125.5 10 15.9 2.5 4.5 1
IR 220BC PA 220 258 245 149 153 20 21 2.0 4.5 2
IR 225BC PA 225 223 210.7 141 145 25 28 2.0 4.5 1
IR 250BC PA 250 255 240 160 164 28 31 2.0 4.5 1

Inlet rings IR-GS series

  • For backward curved blade impellers
  • Made of galvanized steel

Overall dimmensions [mm]

BLAUBERG Inlet ring BLAUBERG Impeller size DA E DE Re F-∅G h t
IR 190BC GS 190 170 158 125 10 4-ø4.5 14 0.6
IR 220BC GS 220 252 236 152 22 4-ø4.5 21 0.6
IR 225BC GS 225 223 210.7 145 21 4-ø4.5 28 1.5
IR 250BC GS 250 255 240 164 18 4-ø4.5 33 1.5
