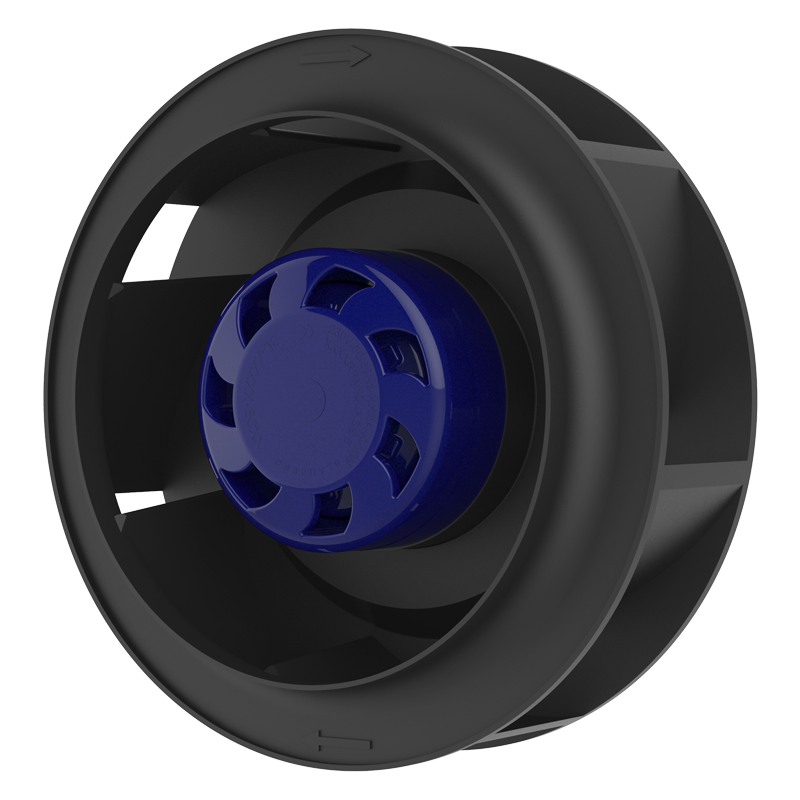

    BC-B175A-EC-00

    • Impeller material: PA6+GF30
    • Direction of rotation: clockwise, seen on rotor
    • Type of protection: IP55
    • Insulation class: B
    • Mode of operation: continuous operation (S1)
    • Bearing: ball bearings
    • Motor protection: self-resetting TOP wired internally
    Download catalogue

    Characteristics

    Modification name

    BC-B175A-EC-00

    Nominal voltage [VAC]

    120

    Frequency [Hz]

    60

    Speed [RPM]

    3252

    Air Flow [m³/h]

    390

    Power input max [W]

    57

    Сurrent max [A]

    0.82

    Sound pressure level [dB(A)]

    72

    Perm. amb. temperature [°С]

    -25...+60

    Motor type

    EC

    Electrical connection

    Type “Е“

    Dimensions [mm]

    175

    Weight [kg]

    1.1

    Performance curves

    Point n [RPM] Pi [W] I [A]
    1 3552 57.1 0.816
    2 3300 57.1 0.814
    3 3252 57.1 0.814
    4 3372 57.1 0.813

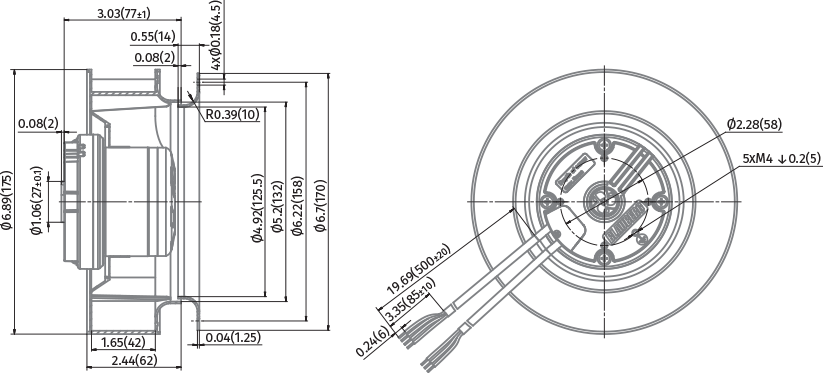

    Dimensions

    BC-B175A-EC-00

    Electrical connections

    Downloads

    Product specification BC-B175A-EC-00 - 120 VAC (pdf 1.86Mb)
