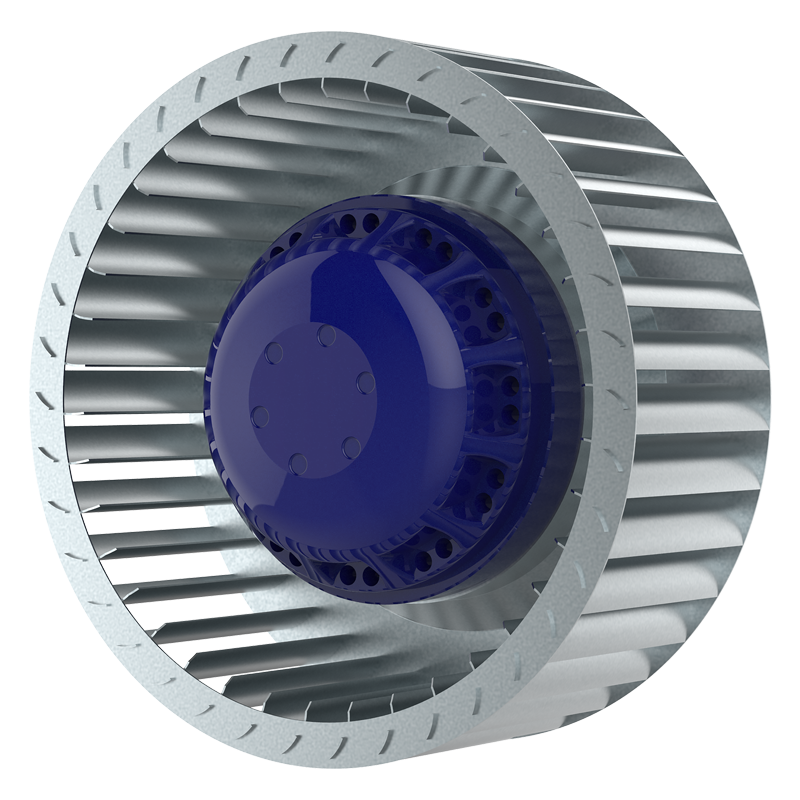

BL-F160A-4E-B01-01
Characteristics
Modification name
BL-F160A-4E-B01-01
Performance curve
I
Nominal voltage [VAC]
230
Frequency [Hz]
50, 60
Speed [RPM]
1500
Air Flow [m³/h]
810
Power input [W]
72
Current [A]
0.37
Sound pressure level [dB(A)]
66
Perm. amb. temperature [°С]
-25...+50
Capacitor [μF/VDB]
1.5/450
Motor type
AC
Electrical connection
Type “A“
Dimensions [mm]

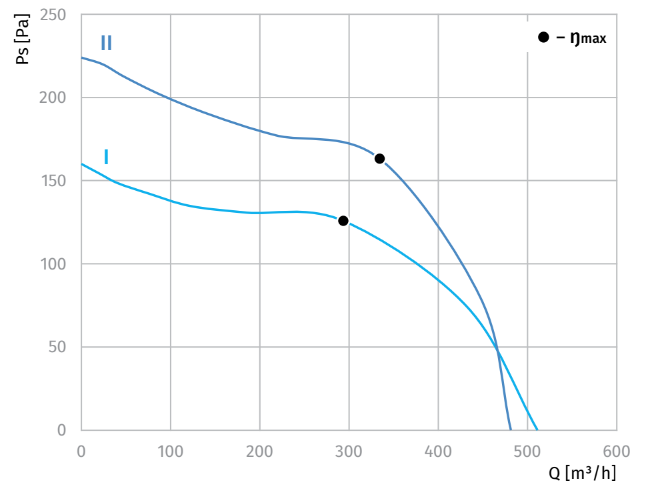

Performance curves
/image (48).png)
Dimensions
/BL-F160A-dimensions-890.png)
Electrical connections
