centrifugal fans

AC centrifugal fan

(forward curved ø 160 mm)

BL-F160A-2E-D02-01

Print version
ACCERoHSErP 2015CCC Download full catalogue
Impeller material: galvanized steel
Direction of rotation: clockwise, seen on rotor
Type of protection: IP44
Insulation class: B, F
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Characteristics
Perfomance curves
Downloads
Dimensions
Electrical connections
Perfomance curves
Modification name Performance curve Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input [W] Current [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Capacitor [μF/VDB] Electrical connection
BL-F160A-2E-D02-01 IV 230 50 2850 250 1.1 68 -25...+50 6.0/450 Type “A“
V 60 3250 270 1.2 72
  • Choice method:
  • Air capacity:
  • Pressure:
Duty point
  • Air capacity: --
  • Pressure: ---
Name Download Watch
Draft Specification Form (pdf 44.85Kb)
AC centrifugal fan (forward curved ø 160 mm) - data sheet (pdf 499.22Kb)
AC centrifugal fan (forward curved ø 160 mm) - image (png 908.3Kb)
AC centrifugal fan (forward curved ø 160 mm) - image (psd 2.71Mb)
Product specification BL-F160A-2E-D01-01 (pdf 409.31Kb)
Product specification BL-F160A-2E-D02-01 (pdf 546.38Kb)
Product specification BL-F160A-4E-B01-01 (pdf 1.57Mb)

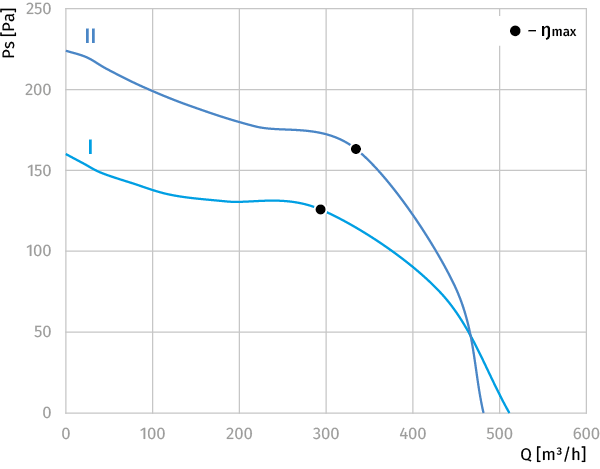

I - BL-F160A-4E-B01-01 (50 Hz)

II - BL-F160A-4E-B01-01 (60 Hz)

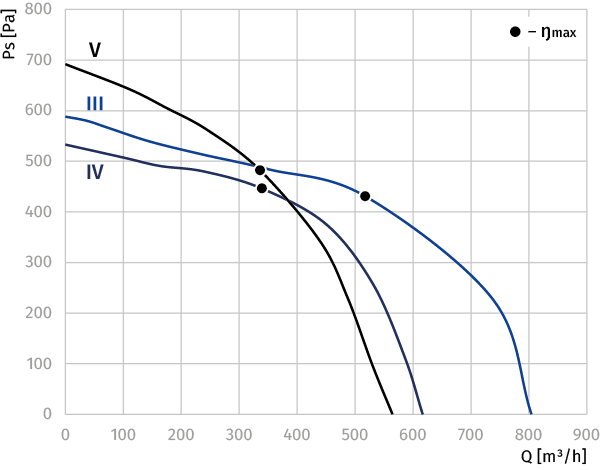

III - BL-F160A-2E-D01-01 (50 Hz)

IV - BL-F160A-2E-D02-01 (50 Hz)

V - BL-F160A-2E-D02-01 (60 Hz)
