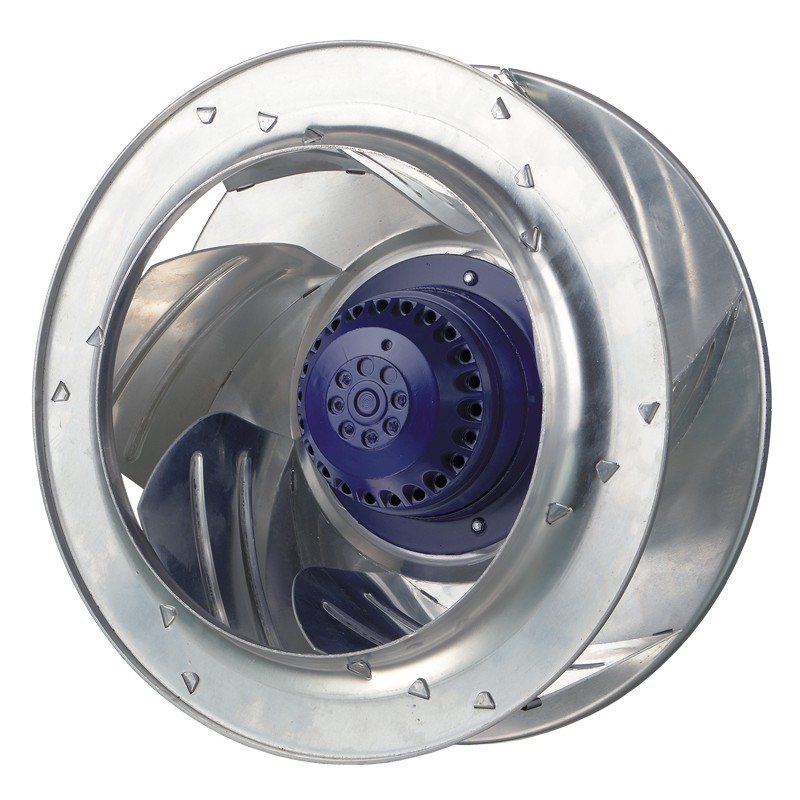

BL-B355A-4E-M01-01
- Impeller material: sheet aluminium
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP54
- Insulation class: F
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-B355A-4E-M01-01
Performance curve
I, II
Nominal voltage [VAC]
230
Frequency [Hz]
50, 60
Speed [RPM]
1400, 1600
Air Flow [m³/h]
2900, 3250
Power input max [W]
205, 290
Сurrent max [A]
0.9, 1.2
Sound pressure level [dB(A)]
72, 76
Perm. amb. temperature [°С]
-25...+50
Capacitor [μF/VDB]
6.0/450
Motor type
AC
Electrical connection
Type “A“
Dimensions [mm]
355
Performance curves
/BL-B355A-4E-M01-01-graph-600-en.png)
Dimensions
/BL-B355A-4E-M01-01-shema-700.png)
Electrical connections
