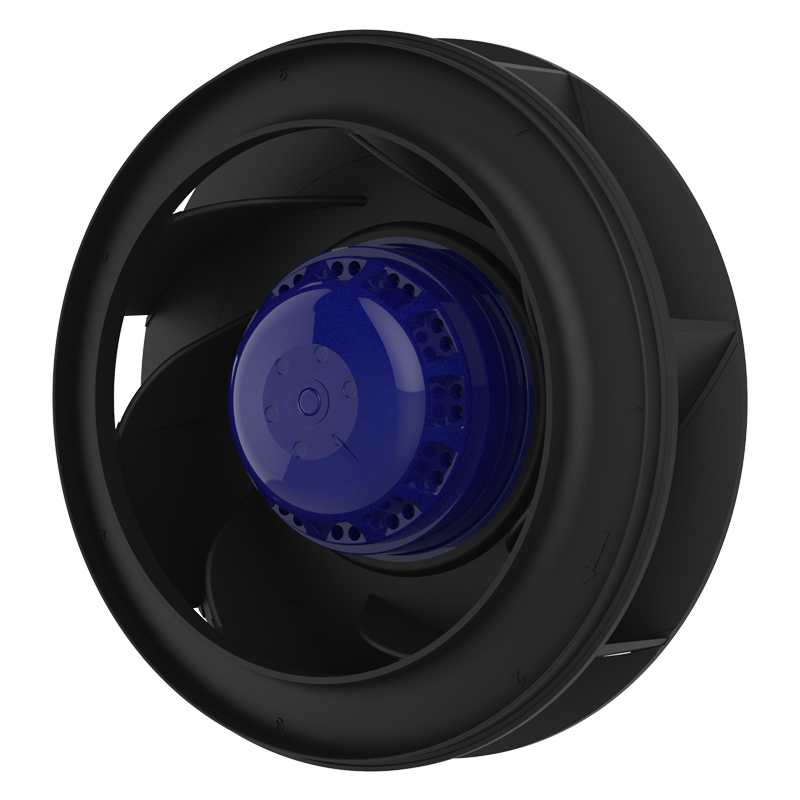

BL-B250С-2E-D01-01
- Impeller material: PA plastic + 30% glass fiber
- Direction of rotation: clockwise, seen on rotor
- Type of protection: IP44
- Insulation class: B
- Mode of operation: continuous operation (S1)
- Bearing: ball bearings
- Motor protection: self-resetting TOP wired internally
Characteristics
Modification name
BL-B250С-2E-D01-01
Performance curve
50/60 Hz
Nominal voltage [VAC]
230
Frequency [Hz]
50/60
Speed [RPM]
2700, 2800
Air Flow [m³/h]
1450, 1500
Power input max [W]
208, 252
Сurrent max [A]
0.9, 1.1
Sound pressure level [dB(A)]
69, 70
Perm. amb. temperature [°С]
-25...+50
Capacitor [μF/VDB]
4/450
Motor type
Electrical connection
Type “A“
Dimensions [mm]
250
Performance curves
/BL-B250С-2E-D01-01_1.png)
Dimensions
/03.07.24 BL-B250С-2E-D01-01 Dim.png)
Electrical connections
