  • Impeller material: PA plastic + 30% glass fiber
  • Direction of rotation: CCW, seen on rotor
  • Type of protection: IP55
  • Insulation class: B
  • Mode of operation: continuous operation (S1)
  • Bearing: ball bearings
  • Motor protection: self-resetting TOP wired internally
Download catalogue

Characteristics

Modification name

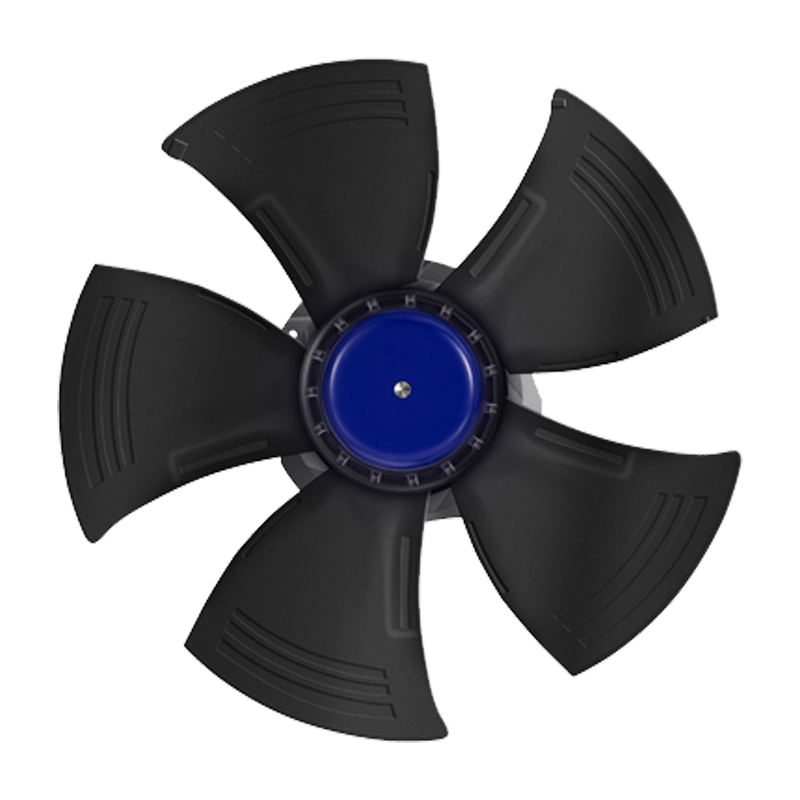

BL-A500C-EC-05S

Nominal voltage [VAC]

230

Frequency [Hz]

50/60

Speed [RPM]

1600

Air Flow [m³/h]

8800

Power input max [W]

700

Сurrent max [A]

3.1

Sound pressure level [dB(A)]

70

Perm. amb. temperature [°С]

-25...+60

Capacitor [μF/VDB]

Motor type

EC

Electrical connection

Type “Е1“

Dimensions [mm]

500

Performance curves

Dimensions

Electrical connections
