AC blowers

(Helix)

Print version
ACCE Download full catalogue
Impeller material: galvanized steel
Direction of rotation: clockwise, seen on rotor
Type of protection: IP44
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
Characteristics
Perfomance curves
Downloads
Dimensions
Electrical connections

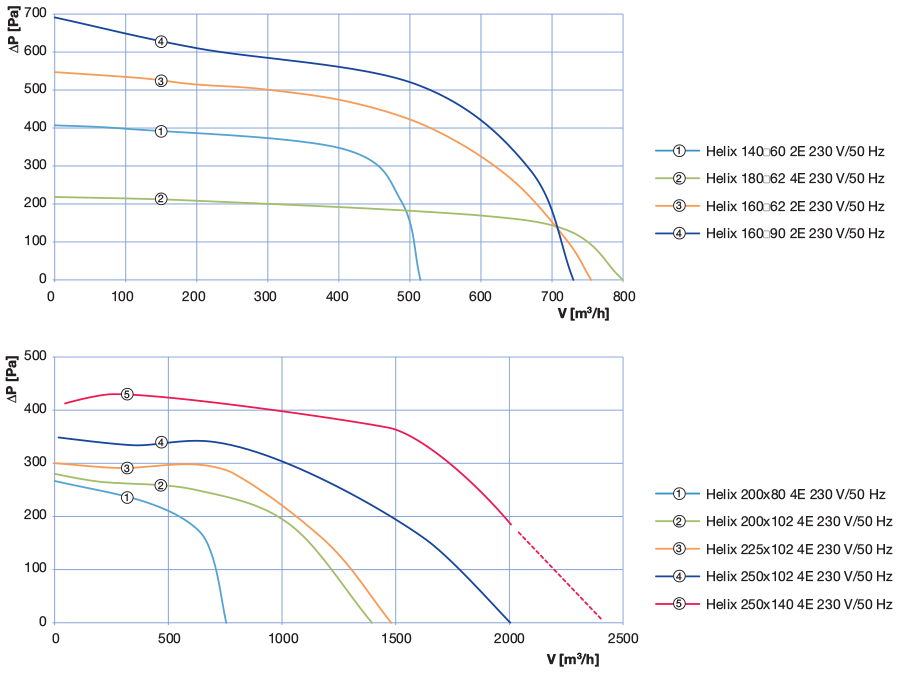

Perfomance curves
Modification name Nominal voltage [VAC] Frequency [Hz] Speed [RPM] Power input [W] Current [A] Sound pressure level [dB(A)] Perm. amb. temperature [°С] Electrical connection Rubber vibration absorbing dampers Spring-loaded vibration absorbing dampers Flange Grille Weight [kg]
Helix 140х60 2E 230 50 2820 140 0.64 68 -25...+45 Type “A“ SI-G 8 SI-F 8 FRZ-H 140 SG-H 140 3.2
Helix 160х62 2E 230 50 2630 320 1.48 70 -25...+50 Type “A“ SI-G 8 SI-F 8 FRZ-H 160 SG-H 160 4.2
Helix 160х90 2E 230 50 2745 320 1.48 70 -25...+45 Type “A“ SI-G 8 SI-F 8 FRZ-H 160 SG-H 160 5.1
Helix 180х62 4E 230 50 1465 160 0.7 62 -25...+45 Type “A“ SI-G 8 SI-F 8 FRZ-H 180 SG-H 180 6.5
Helix 200x80 4E 230 50 1430 125 0.55 63 -25...+45 Type “A“ SI-G 8 SI-F 8 FRZ-H 200 SG-H 200 6.8
Helix 200x102 4E 230 50 1475 280 1.25 65 -25...+40 Type “A“ SI-G 8 SI-F 8 FRZ-H 200 SG-H 200 7.3
Helix 225x102 4E 230 50 1330 395 1.98 69 -25...+70 Type “A“ SI-G 16 SI-F 16 FRZ-H 225 SG-H 225 11.2
Helix 250x102 4E 230 50 1330 810 3.65 63 -25...+70 Type “A“ SI-G 16 SI-F 16 FRZ-H 250 SG-H 250 16.3
Helix 250х140 4E 230 50 1310 570 2.48 60 -25...+70 Type “A“ SI-G 16 SI-F 16 FRZ-H 250 SG-H 250 15.5
  • Choice method:
  • Air capacity:
  • Pressure:
Duty point
  • Air capacity: --
  • Pressure: ---
Name Download Watch
Draft Specification Form (pdf 44.85Kb)
AC blowers (Helix) - data sheet (pdf 142.97Kb)
AC blowers (Helix) - image (png 586.23Kb)
AC blowers (Helix) - image (psd 2.26Mb)

Model Dimensions [mm]
ØD B H H1 H2 L L1 L2 P M
Helix 140x60 2E 140 243 287 125 93 85 107 75 - -
Helix 160x62 2E 160 277 324 136 106 89 112 82 - -
Helix 160x90 2E 160 277 324 136 106 136 158 127 - -
Helix 180x92 4E 180 311 360 150 120 145 166 137 - -
Helix 200x80 4E 200 335 398 165 134 121 140 113 - -
Helix 200x102 4E 200 335 398 165 134 157 175 148 - -
Helix 225x102 4E 225 365 441 210 171 145 170 137 178 250
Helix 250x102 4E 250 410 485 230 191 165 190 157 198 270
Helix 250x140 4E 250 410 485 230 191 205 230 197 238 270
